L3/D |
Specifications |
|
| Type | 3 Way Direct Mount DP Manifold Pipe to Flange |
| Inlets | Female 1/2" NPT |
| Outlets | Flanged 'O'-Ring Transmitter Hook-Up |
| Packing | PTFE Graphite |
| M.C.W.P. Pressure | 6000 psi / 10000 psi |
| Temperature Range | -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite |
| Weight | 1.21 kg |

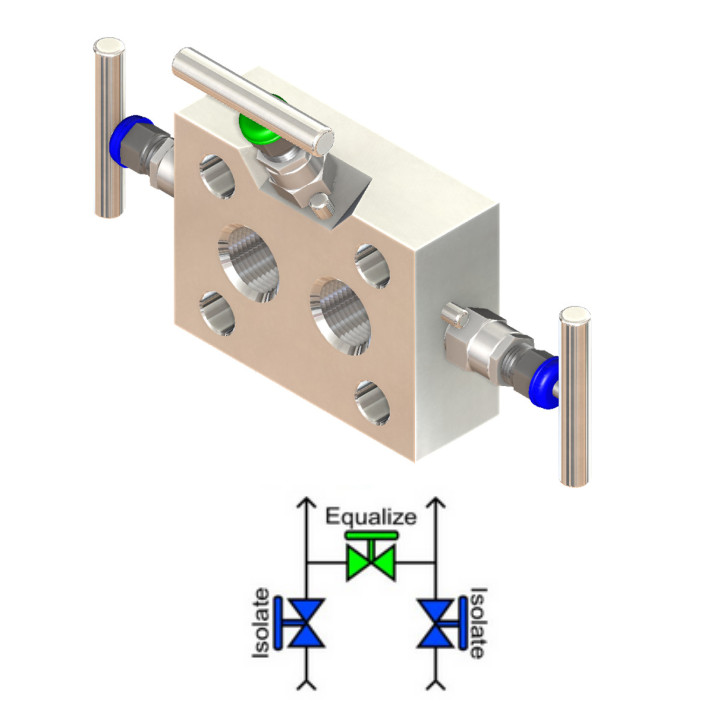

3 Way Direct Mount Manifold (Compact Design)
|
| The L3/D manifold mounts directly to standard differential pressure transmitters. It is designed to be the smallest package possible for the space and cost conscious. Placement of transmitter and manifold are made easier due to it's compact design. The manifold is supplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number. |
