L5/G |
Specifications |
|
| Type | 5 Way Remote Mount Manifold Pipe to Pipe |
| Inlets | Female 1/2" NPT |
| Outlets | Female 1/2" NPT |
| Packing | PTFE Graphite |
| M.C.W.P. Pressure | 6000 psi / 10000 psi |
| Temperature Range | -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite |
| Weight | 1.83 kg |

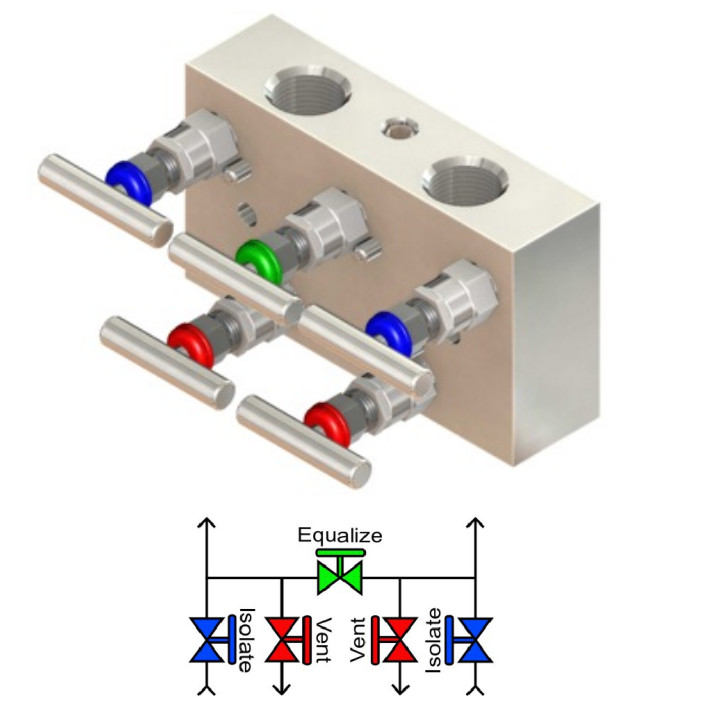

5 Way Remote Mount Manifold with All Taps On Top
|
| The L5/G manifold mounts remotely from differential pressure transmitters, gauges or switches. The "all taps on top" design allows this manifold to be panel mounted for a clean system look. |
Features |
|
