L5/R |
Specifications |
|
| Type | 5 Way Remote Mount Manifold Pipe to Pipe |
| Inlets | Female 1/2" NPT |
| Outlets | Female 1/2" NPT |
| Packing | PTFE Graphite |
| M.C.W.P. Pressure | 6000 psi / 10000 psi |
| Temperature Range | -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite |
| Weight | 1.79 kg |

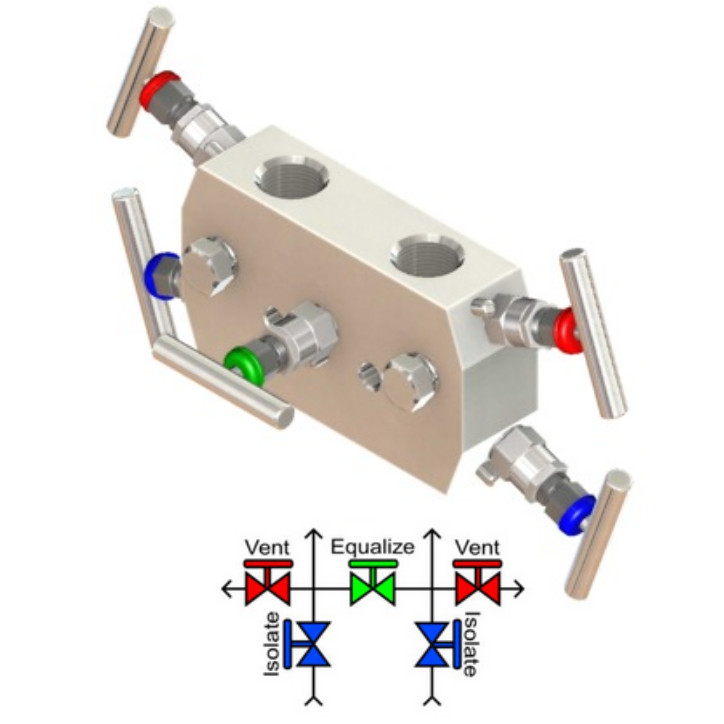

5 Way Remote Mount Manifold with Side Mounted Isolate Taps
|
| The L3/R manifold mounts remotely from differential pressure transmitters, gauges or switches. With 54mm Process and instrument connection PCD's, this manifold easily connects to most standard transmitters. |
Features |
|
