L2/P

Specifications
Type 2 Way Remote Mount Manifold
Pipe to Pipe
Inlets Female 1/2" NPT
Outlets Female 1/2" NPT
Packing PTFE
Graphite
M.C.W.P. Pressure 6000 psi / 10000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite
Weight 0.98 kg

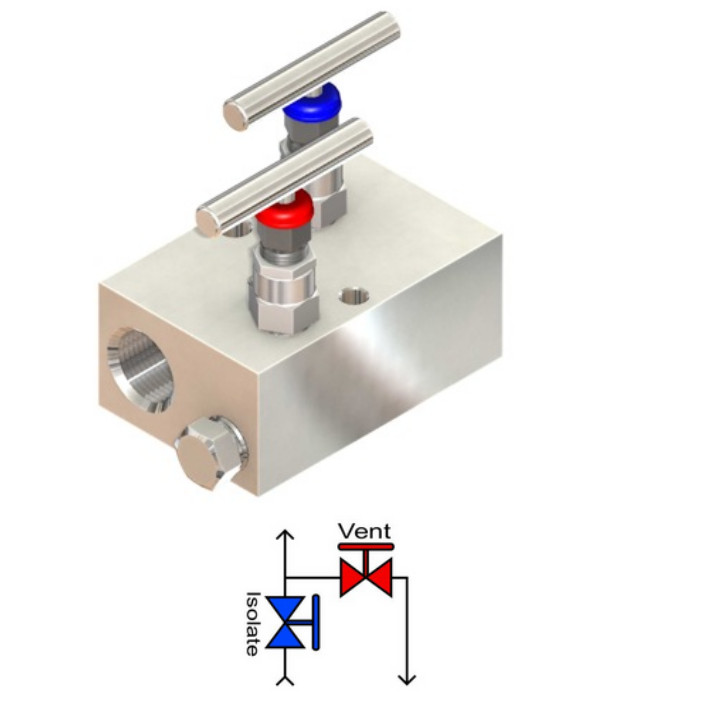

2 Way Remote Mount with Top Mounted Taps
The L2/P manifold mounts remotely from pressure transmitters, gauges or switches. The all taps on top design allows this manifold to be panel mounted for a neat system look.

Features


  • Lightweight
  • Liquid and vapor service
  • 90° Tap orientation
  • Wide spacing between tap handles
  • Venting on process connection face for easy piping
  • Can be mounted on a flat surface
  • Remote mount and compact allowing flexible system design
  • Full traceability
  • 100% pressure tested
  • Up-stream venting available
  • Versatile mounting options for horizontal and vertical mounts
  • Available in most exotic materials

Plug Option >>>
To order manifold with plug installed use
-P option in the part number
Bleed Plug Option >>>
To order manifold with bleedplug installed use
-Q option for the part number
 Bracket Options >>>
  This is a bracket example


Certification and Testing >>>
These Manifolds are 100% tested and can be supplied with all relevant traceability documentation and EN10204 3.1 MTR certs.
Read More......
2 Compression Fittings Connector Kit >>>
To order manifold with compression fittings use
KIT-1234 option in the part number
