L2/CT

Specifications
Type 2 Valve Co-Planar Manifold
Pipe to Flange
Inlets Female 1/2" NPT
Outlets Flanged Co-Planar Transmitter Hook-Up
Packing PTFE
Graphite
M.C.W.P. Pressure 6000 psi / 10000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE
-30°C (-22°F) to 440°C (824°F) Graphite
Weight 0.80 kg

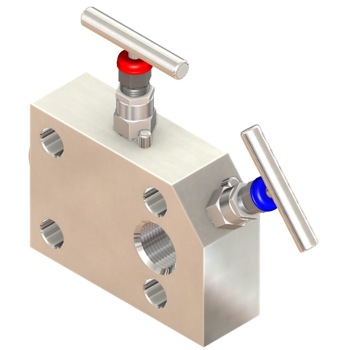

2 Valve Co-Planar Manifold
The L2/CT manifold mounts directly to Rosemount 3051 Co-Planar style pressure transmitters. With its compact design, costs can be reduced to a minimum including shipping costs. The manifold can be supplied with its bolting kit easily with an adder on the part number.

Features


  • ŸCompact light-weight body
  • ŸSmall body for the space and cost concious
  • ŸLiquid and vapor service
  • Ÿ90 Degree venting
  • ŸFlanged Narrow Outlet 3051 Transmitter “O” Ring Hook-Up Ÿ
  • Full traceablilty Ÿ
  • 100% Pressure tested
  • ŸVarious bolting kits available
  • ŸFeatures Rosemount 3/8” x 16 UNC mounting option as standard
  • Available in most exotic materials



Plug Option >>>
To order manifold with plug installed use
-P option in the part number
Bleed Plug Option >>>
To order manifold with bleedplug installed use
-Q option for the part number
2 Bolt Kit Options >>>
2 Bolt manifold to transmitter assembly kit
-ZK option for carbon steel bolts and
-ZH option for 316SS bolts
 Bracket Options >>>
  This is a bracket example


Transmitter Gasket Seals >>>
Gasket seals kits can be ordered
SEALS-24-18-2.75PT for PTFE (teflon)
SEALS-24-18-3.2PG for Graphite (Graphoil)
Certification and Testing >>>
These Manifolds are 100% tested and can be supplied with all relevant traceability documentation and EN10204 3.1 MTR certs.
Read More......
Compression Fittings Connector Kit >>>
To order manifold with compression fittings use
KIT-1234 option in the part number
