L3/HK |
Specifications |
|
Type | 3 Way H-Section Manifold Flange to Flange |
Inlets | Kidney Flange |
Outlets | Flanged "O" Ring Transmitter Hook-Up |
Packing | PTFE Graphite |
M.C.W.P. Pressure | 6000 psi / 10000 psi |
Temperature Range | -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite |
Weight | 1.60 kg |

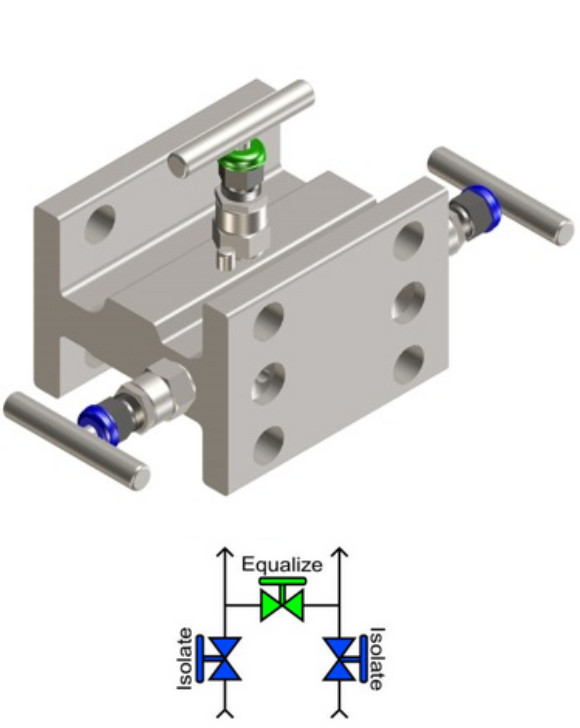

3 Way H-Section Manifold
|
The L3/HK manifold mounts directly to standard pressure transmitters, allowing isolation and venting of process media for testing and calibration of transmitter with ease. This manifold can be purchased with an option for bleed/vent ports if needed. Great cost benefits can be achieved due to the light weight design, such as reducing shipping costs. The manifold is supplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number. |
Features |
|
