Specifications |
|

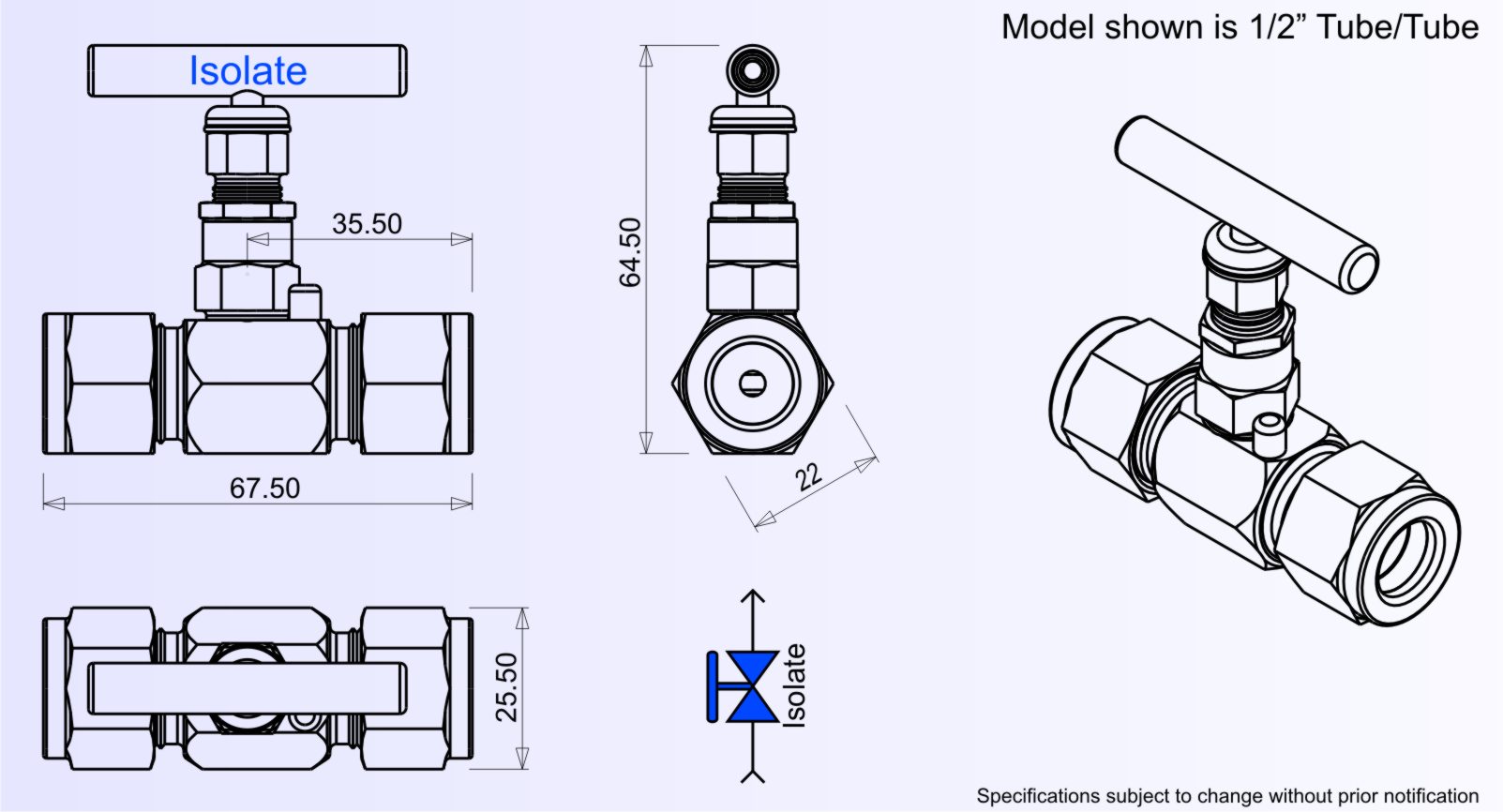

| Type | 1 Way Isolation Valve (Pipe to Pipe) |
| Packing | PTFE Graphite |
| M.C.W.P. Pressure | 6000 psi / 10 000 psi |
| Temperature Range | -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite |
| Approximate Weight | 260 g |
Connection Options |
|
| Process Connection | Instrument Connection |
| 1/4" Tube | 1/4" Tube |
| 3/8" Tube | 3/8" Tube |
| 1/2" Tube | 1/2" Tube |
